Luxman

Luxman D-03X

$4,995.00 USD
$4,995.00 USD
Shipping policy

Special order item

Free shipping

In stock. Ready to ship

Luxman D-03X CD Player is a disc player and USB DAC that plays CD and MQA-CD discs and accepts digital audio via USB, coaxial, and optical inputs. USB supports PCM up to 384 kHz/32-bit and DSD up to 11.2 MHz. The DAC uses dual Texas Instruments PCM1795 DACs in dual mono. RCA and XLR Analog outputs. Frequency response extends to 47 kHz via USB and THD is 0.002%. The Luxman D-03X CD Player is a compact, premium CD player for discerning audiophiles.

Specifications
  • Supported Discs: CD, CD-R, CD-RW, MQA-CD
  • Supported Sampling (USB PCM): 44.1 to 384 kHz, 16/24/32 bit
  • Supported Sampling (USB DSD): 2.8, 5.6, 11.2 MHz
  • Supported Sampling (Coaxial/Optical): 44.1 to 192 kHz, 16/20/24 bit
  • Analog Output and Impedance (Unbalanced): 2.4 V / 300 Ω
  • Analog Output and Impedance (Balanced): 2.4 V / 600 Ω
  • Analog Output (DSD): 1.7 V
  • Frequency Response (CD): 5 Hz to 20 kHz (+0, −1.0 dB)
  • Frequency Response (Coaxial/Optical): 5 Hz to 47 kHz (+0, −3.0 dB)
  • Frequency Response (USB): 5 Hz to 47 kHz (+0, −3.0 dB)
  • Total Harmonic Distortion (CD): 0.003%
  • Total Harmonic Distortion (Coaxial/Optical): 0.002%
  • Total Harmonic Distortion (USB): 0.002%
  • S/N Ratio: 101 dB (CD), 114 dB (COAX/OPT), 113 dB (USB) IHF-A
  • D/A Converter: Texas Instruments PCM1795 x2, dual mono
  • Power Consumption: 18 W
  • External Dimensions: 440 W x 133 H x 410 D mm
  • Net Weight: 13.2 kg
  • Accessories: Remote control RD-28, power cable
More information View images
Luxman D-03X
Luxman D-03X
Luxman D-03X
Luxman D-03X
Luxman D-03X
Luxman D-03X

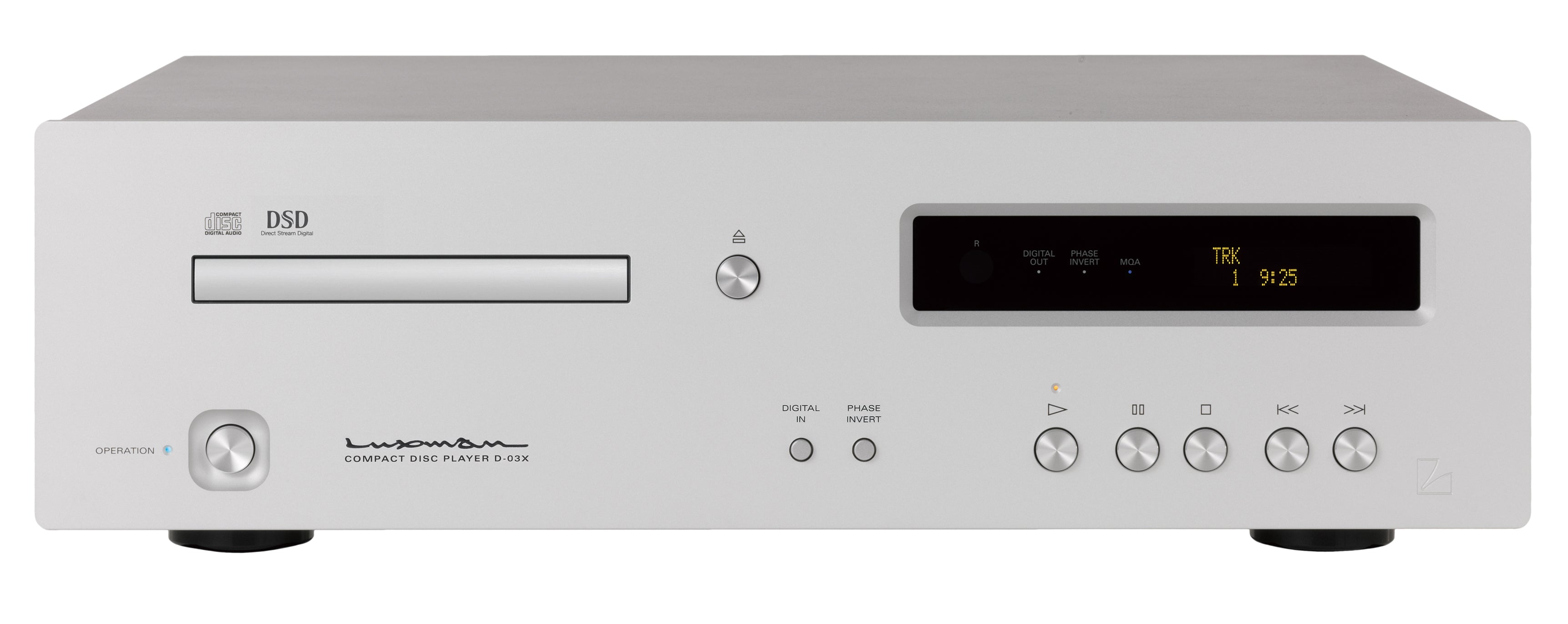

Luxman D-03X Compact Disc Player and USB DAC

Luxman D-03X is a CD player and digital to analog converter designed for low noise playback and clean system integration. It plays CD and MQA CD discs and accepts digital audio from external sources over USB, coaxial, and optical inputs. Balanced XLR and unbalanced RCA outputs feed integrated amplifiers or control amps, and the front panel interface keeps transport and input selection straightforward.

Design and Engineering

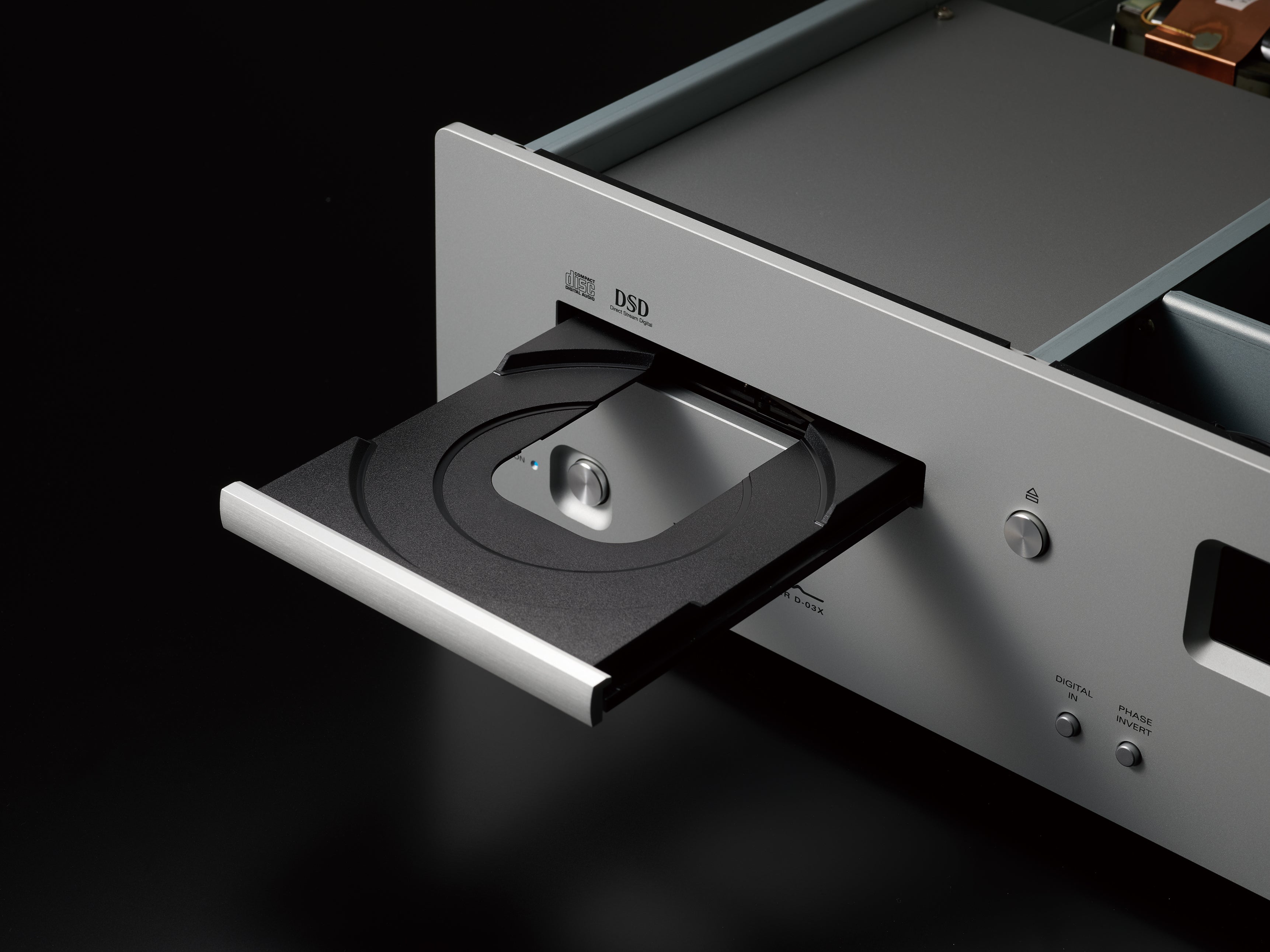

Disc mechanism

A rigid, precisely guided transport handles compact discs with stable servo control. The mechanism is isolated from the audio boards to limit vibration transfer and electrical interference.

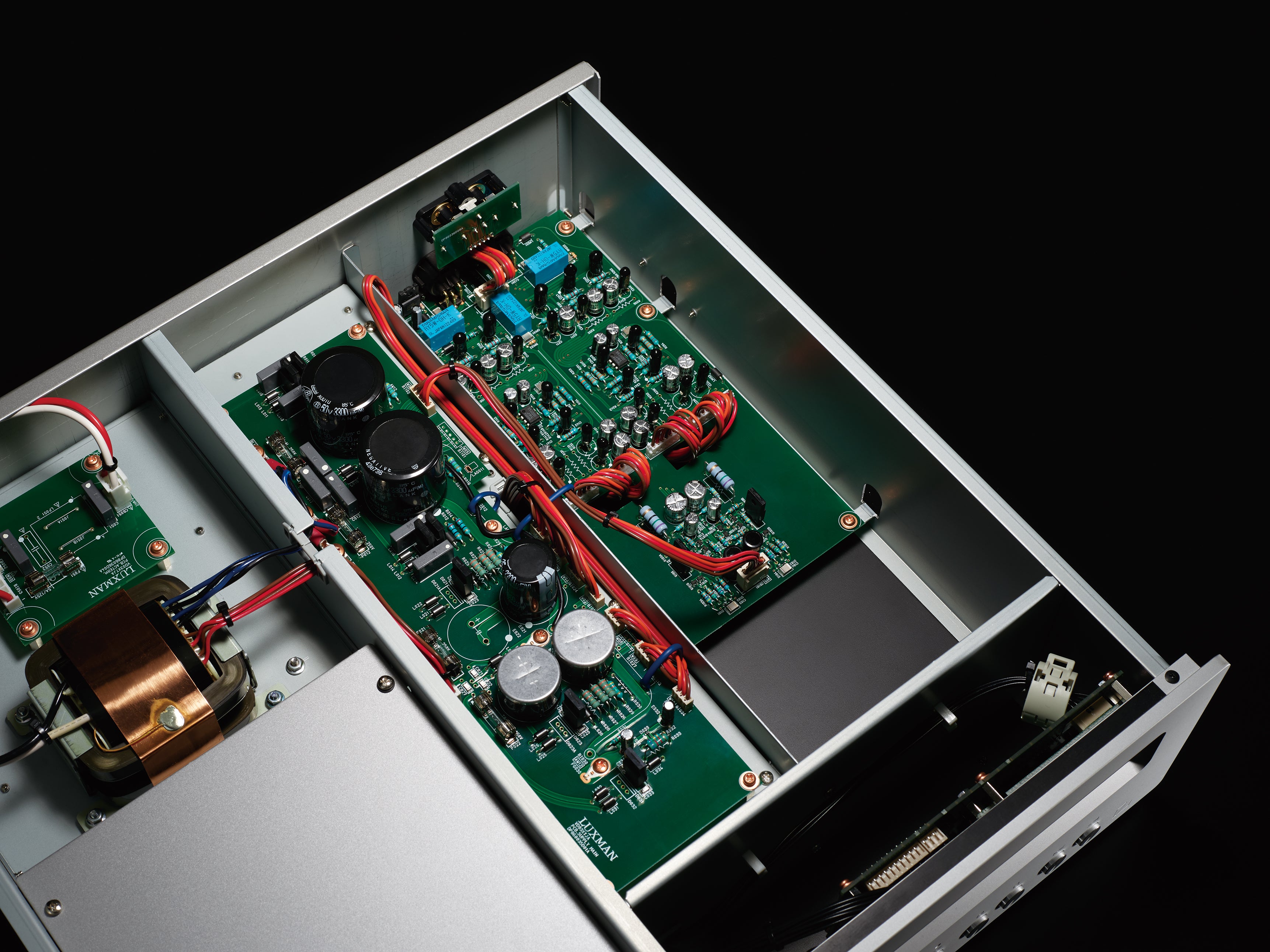

DAC architecture

Conversion is performed in dual mono with short, symmetrical analog paths after the DACs. Output stages are tuned for wide bandwidth and consistent impedance so downstream gear sees a stable source.

Clocking and USB

Master clocking reduces jitter at the conversion stage. USB audio supports high rate PCM and DSD from a computer or network transport, with data handling that maintains transfer stability.

Chassis and isolation

A thick aluminum enclosure, internal partitions, and shielding reduce microphony and airborne interference. Power and signal wiring are routed to keep digital domains away from analog circuits.

Connectivity and Control

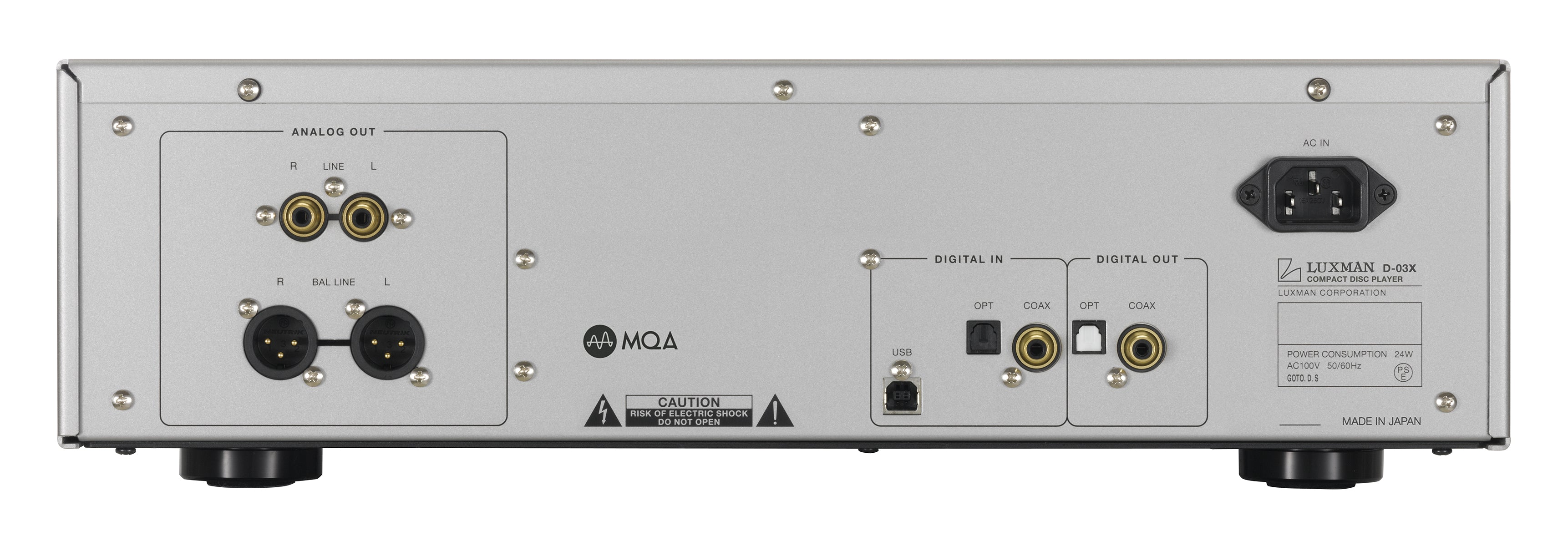

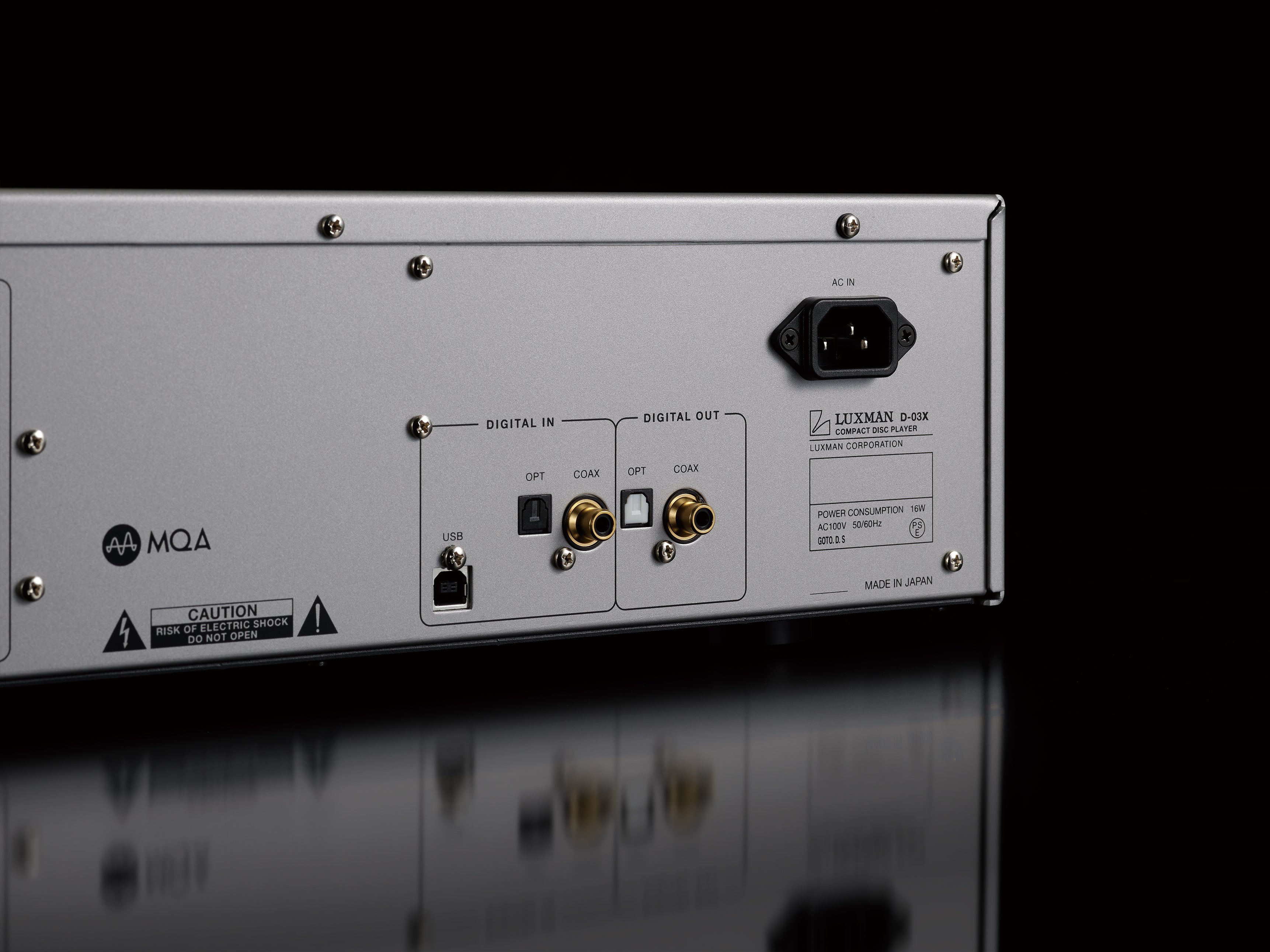

Digital inputs and outputs

USB type B accepts computer or streamer sources. Coaxial and optical inputs support common S PDIF formats and there is digital output for use with an external DAC if desired.

Analog outputs

Balanced XLR and unbalanced RCA provide fixed reference level output for easy level matching. Output muting prevents thumps during power and input changes.

User interface

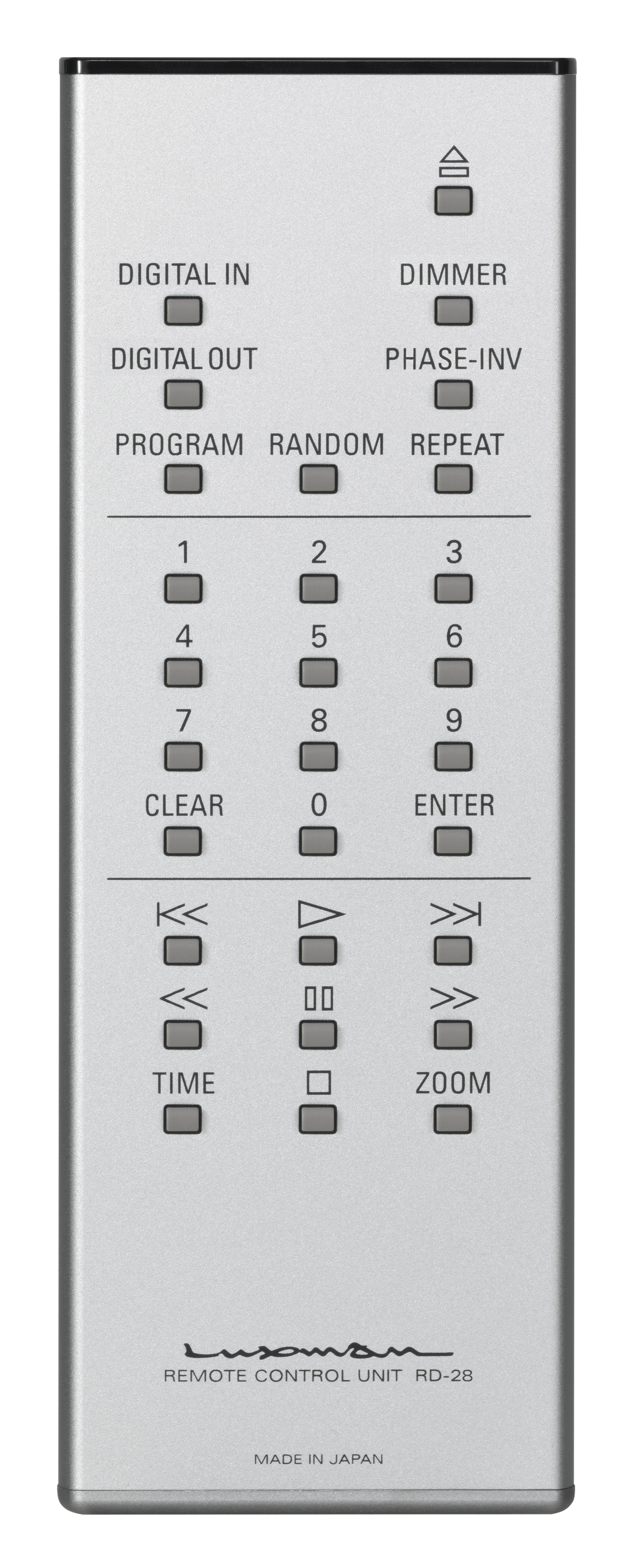

The front panel shows input, sample rate, and transport status at a glance. The supplied remote mirrors transport and input controls for listening position operation.

Everyday Usability

Disc loading is quick and reliable. Input switching is quiet and preferences are retained, so daily use comes down to choosing disc or external source and pressing play.

Placement and Setup Tips

  • Use a ventilated shelf and avoid stacking on heat producing components
  • Connect USB directly to the source and keep the cable run short
  • Separate digital cables and AC cords from analog interconnects
  • If using an external DAC, choose the D 03X digital output that matches the DAC input preference

Position in the Line

D 03X is the most compact disc player DAC in this family. It focuses on CD and USB DAC duties and sits below D 07X and D 10X, which add a more advanced transport and higher specification conversion stages.

Who It Is For

Listeners who want a single box for CD playback and external digital sources, with balanced and unbalanced outputs and simple, reliable operation.

In the Box

CD player, remote control RD 28, power cable, owner’s manual, warranty card.
