Michell

Michell Apollo Phono Stage

$4,950.00 USD
$4,950.00 USD
Shipping policy

Special order item

Free shipping

Ships from manufacturer within 3 days

The Apollo phono stage pairs with the external MUSE power supply to deliver ultra-clean, stable DC via dual filtration and a toroidal transformer. Class A preamplifiers and a passive RIAA circuit use hand‑matched components for precise channel balance. It offers selectable gain (40/50/60/68/73 dB) and load settings (33 Ω to 47 kΩ) to support MM and MC cartridges. Each unit is machined from solid aluminium. The Michell Apollo Phono Stage delivers low-noise, highly detailed analog playback.

Specifications

AVAILABLE CARTRIDGE GAIN
TYPE: OUTPUT – GAIN

  • MM: 5 mV – 40 dB
  • MM LOW: 2–3 mV – 50 dB
  • MC: 0.4–0.6 mV – 60 dB
  • MC LOW: 0.25–0.4 mV – 68 dB
  • MC VERY LOW: 0.05–0.25 mV – 73 dB

SPECIFICATIONS

  • THD: <0.01%
  • THD+N: –104 dB
  • SINAD: >104 dB
  • RIAA EQ Accuracy: 20 Hz to 20 kHz < ±0.1 dB
  • Mains Voltage (Factory Set): 100–240 V, 50/60 Hz
  • DC Voltage: +24 V and –24 V DC
  • Power Consumption: 5 watts
  • Dimensions: 115 mm (W) × 280 mm (D) × 60 mm (H)
  • Weight (Combined Both Units): 3 kg
  • Packaging Dimensions: 480 mm × 400 mm × 110 mm
  • Shipping Weight: 4.7 kg
More information View images
Michell Apollo Phono Stage
Michell Apollo Phono Stage
Michell Apollo Phono Stage
Michell Apollo Phono Stage
Michell Apollo Phono Stage

Michell Apollo Phono Stage

The Michell Apollo is a fully discrete MM/MC phono stage designed for maximum transparency and ultra-low noise. It works in conjunction with the Michell MUSE power supply, which provides isolated dual-voltage DC power for optimal performance and minimal interference.

Design and Construction

Each Apollo unit is machined from a single billet of aluminum to form a solid, non-resonant enclosure that functions as a Faraday cage. This ensures excellent shielding from both mechanical vibration and electromagnetic noise.

Circuitry and Performance

The signal path is based on a dual-mono, fully discrete Class A design. It uses a passive RIAA equalization network and high-grade, hand-matched components to maintain channel balance and reduce distortion. The circuit is housed on a four-layer gold-plated PCB for improved grounding and signal purity.

Gain and Loading

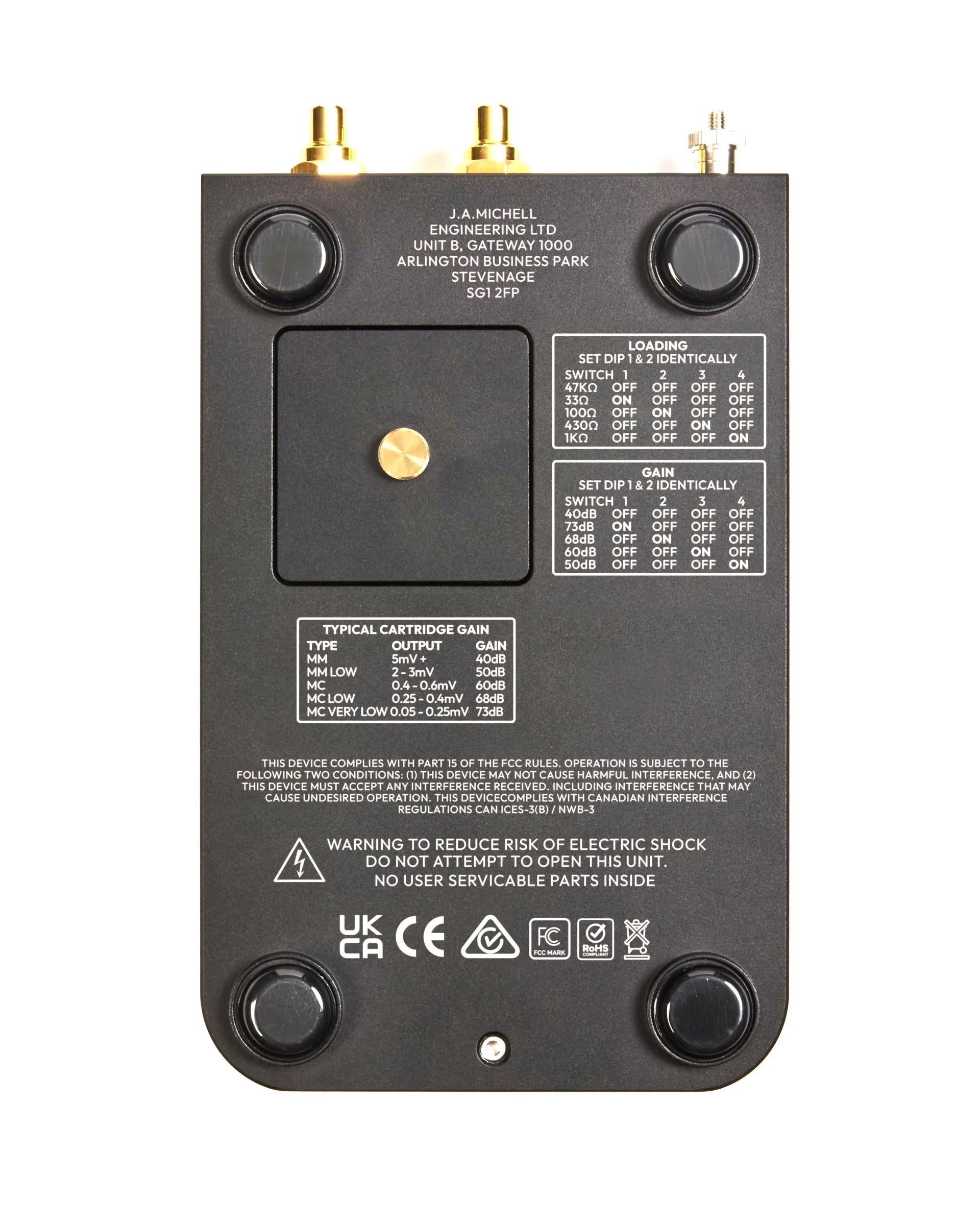

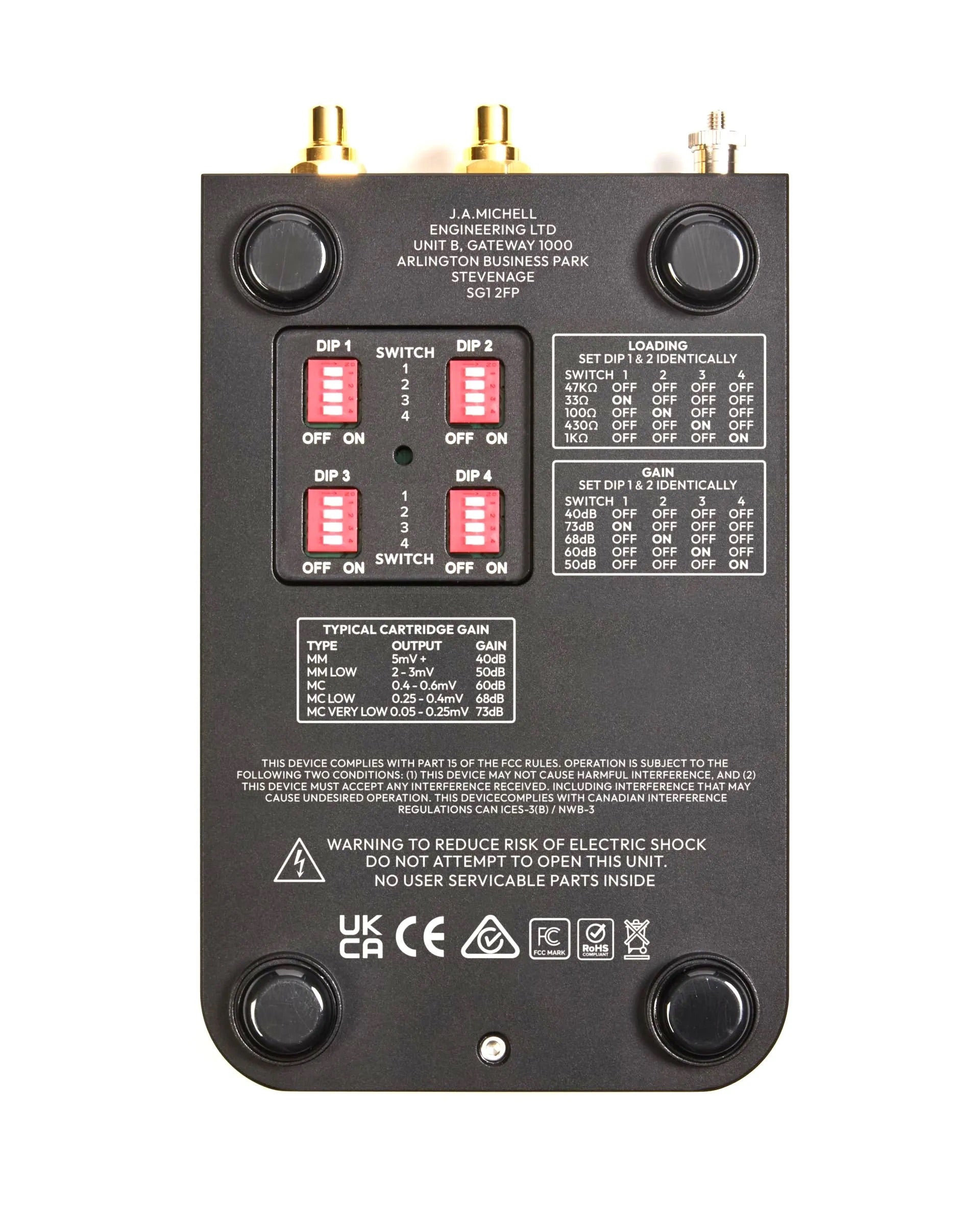

The Apollo offers five selectable gain levels: 40, 50, 60, 68, and 73 dB. Cartridge loading is adjustable across five values: 47 kΩ, 1 kΩ, 4.3 kΩ, 1 kΩ, and 330 Ω, all with a fixed 100 pF capacitance. Settings are selected via rear-panel switches.

Power Supply

The included Michell MUSE PSU features a toroidal transformer, independent regulation for each voltage rail, and multiple stages of filtration. It provides ±24V DC to the phono stage.
